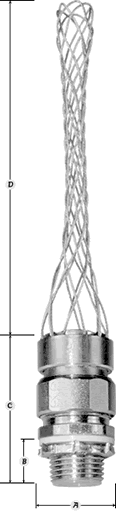

Dimensional
Table
|
Cat
#
|
A
Diameter
|
B
Length of Thread
|
C
Connector
Length
|
D
Mesh
Length
|
| STR38GT |
1.06 |
.59 |
1.43 |
6.00 |
| STR50GT |
1.19 |
.59 |
1.43 |
5.25 |
| STR75GT |
1.38 |
.59 |
1.56 |
6.50 |
| STR100GT |
1.69 |
.66 |
1.69 |
7.75 |
| STR125GT |
2.06 |
.63 |
2.03 |
10.63 |
| STR150GT |
2.38 |
.63 |
2.22 |
11.00 |
| STR200GT |
2.88 |
.66 |
2.28 |
14.00 |
|
|
- Prevents pullout for motion,
strain and stress
- Multi-weave stainless
steel mesh
- Suitable
for hazardous locations, Class
I, Div. 2; Class
II, Div. 1&2;
Class III, Div. 1&2
- Insulated “O” ring
and locknut included
- Includes insulated
throat
- Reusable
|
E93605
|
 |
LR61799 |
Cat
#
|
Size
|
Std
Pkg
|
WT/100
|
| STR38GT |
3/8"
|
10
|
15
|
| STR50GT |
1/2”
|
10
|
20
|
| STR75GT |
3/4”
|
10
|
25
|
| STR100GT |
1"
|
10
|
35
|
| STR125GT |
1-1/4"
|
2
|
60
|
| STR150GT |
1-1/2”
|
2
|
85
|
| STR200GT |
2”
|
2
|
130
|
| STR250GT* |
2-1/2”
|
1
|
350
|
| STR300GT* |
3”
|
1
|
470
|
| STR350GT* |
3-1/2”
|
1
|
580
|
| STR400GT* |
4”
|
1
|
670
|
*Larger sizes available upon request
|
|
|
